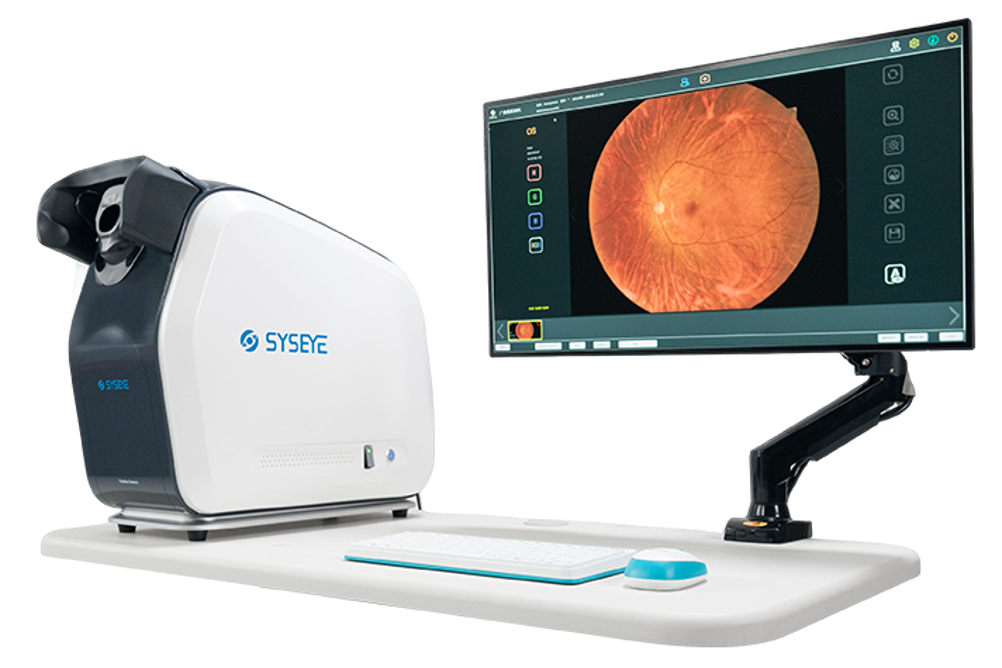

RetiCam 3100 Plus
Non-Mydriatic Fully Automatic Ultra-Widefield True-Color Fundus Camera
Capture up to 176° in a single true-color fundus image and beyond 220° with automated mosaic
Non-Mydriatic Fully Automatic Ultra-Widefield True-Color Fundus Camera
Capture up to 176° in a single true-color fundus image and beyond 220° with automated mosaic
Ultra-Wide True Color
Have you ever imagined capturing more than 200° of the retina in a single, true-color view? With RetiCam 3100 Plus, automated mosaic technology makes it real — revealing retinal periphery that standard cameras simply leave out.

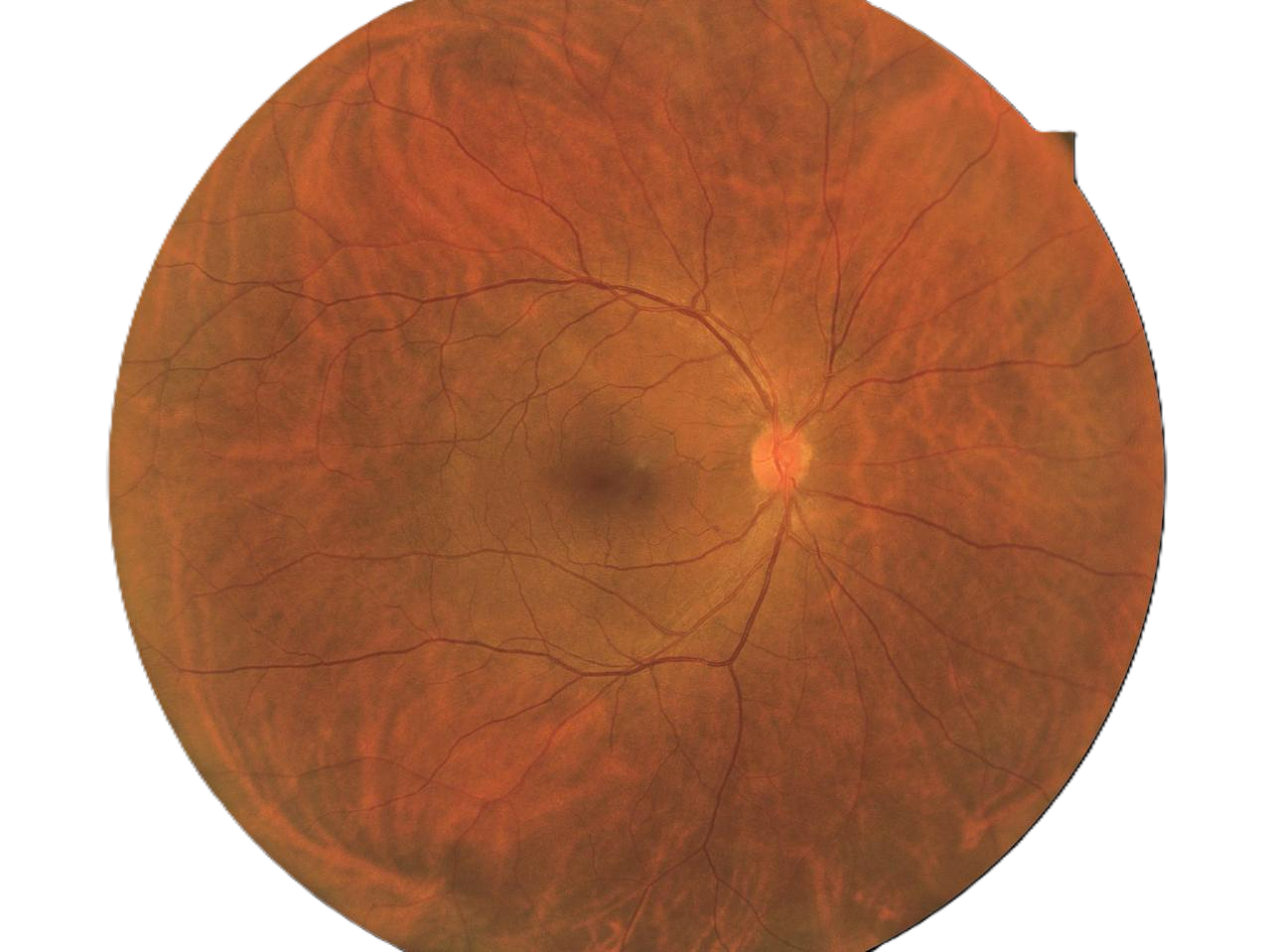

Capture a 176° true-color fundus image from the eye center in a single shot, then automatically extend beyond 220° with mosaic — reducing the number of images needed and revealing more periphery.
Fully automated, joystick-free image acquisition — with automatic focus, exposure, alignment and working-distance adjustment — makes high-quality imaging repeatable across operators.
LED soft exposure technology and maximum illumination <130,000 lx are designed to reduce pupil shrinkage and discomfort, making exams easier on children and light-sensitive patients.
Ultra-fast acquisition lets you image many patients in a short time, helping clinics handle busy screening days and follow-up visits without compromising image quality.
Offline, unlimited AI assistance helps detect retinal changes without recurring cloud costs, while flexible software controls (brightness, contrast, gamma, RGB gain) make it easier to optimize and export images for training, teaching or AI development.
See More Retinal Pathologies .. See the Difference With Your Own Eyes
| RetiCam 3100 Plus — Ultra Wide-field Fundus Camera | |
|---|---|
| Imaging & Optics | |
| Imaging technology | LED true color |
| Light source | LED white light / true-color continuous spectrum |
| Imaging modes | Color image, true color |
| Field of view (Measured from the center of the eye) |
Wide field 176° (±5%) single shot Ultra wide field 220° (two images) Multi-mosaic > 260° |
| Optical resolution | 8 μm (±7%) |
| Working distance | 10 mm ± 2 mm |
| Diopter compensation | –35 D to +40 D |
| Capture & Performance | |
| Capture modes | Single capture, automatic mosaic |
| Capture speed |
Image acquisition approx. 0.06 s 16 frames/second (live preview) |
| Acquisition workflow | Fully automated, joystick-free image capture with automatic focus, exposure, alignment and working-distance adjustment. |
| Dynamic video | Video recording up to 40 seconds |
| IR preview | Yes, with video recording support |
| Image resolution | 12 Megapixels |
| Patient Comfort & Exposure | |
| Soft exposure technology | Reduces pupil shrinkage after exposure, improves comfort, and better adapts to children and special patients. |
| Flash illumination | Maximum illumination < 130,000 lx |
| Minimum pupil size | 3.0 mm to obtain the full 176° field (smaller pupils can still be imaged with reduced FOV) |
| Exposure feel | Soft / weak exposure, designed for comfort |
| Software | |
| AI retina assistant | Offline, unlimited-use AI assistance (optional) for detection of retinal biomarkers and changes — without ongoing per-use costs. |
| Software tools | Brightness, contrast, gamma and RGB gain adjustments; multiple review stations (internal / external) and flexible export for teaching, reporting and AI training. |
| Connectivity | DICOM 3.0, LAN, USB, FTP |
| Display & Power | |
| Monitor | 27-inch color monitor, 2560 × 1440P |
| Power supply | AC 220 V, 200 W |
| *Specifications and design are subject to change without notice. | |
Seven reasons it stands out in daily practice
RetiCam 3100 Plus is designed for retina clinics, screening programs and teaching centers that need ultra-widefield coverage, true-color images, fast workflows and reliable, standardized image quality.
LED true-color imaging preserves natural fundus appearance, so physicians can interpret subtle changes with confidence and use images as a stable reference for teaching — without recalling patients just to confirm color accuracy.
Up to 176° in a single shot and >220° with mosaic allow screening and diagnosis of macular disease (DR, AMD and more) while visualizing peripheral changes that narrow-field cameras may leave outside the frame.
Automatic focus, exposure, alignment and working-distance control standardize image acquisition. Staff can be trained quickly, and consistent image quality becomes achievable regardless of operator experience.
Very fast image acquisition enables imaging many patients in a short time — ideal for community screening campaigns, satellite clinics and high-volume outpatient settings.
Soft LED exposure and non-mydriatic operation are more comfortable for children and light-sensitive patients, helping to improve acceptance and cooperation during imaging.
.svg){kind=icon}
RetiCam 3100 Plus maintains high optical resolution across its ultra wide field, so you see fine details not only at the posterior pole but also in mid-peripheral and peripheral retina.
Offline, unlimited AI assistance helps detect retinal biomarkers without recurring subscription costs. At the same time, advanced controls for clarity, contrast and RGB gain make it easier to standardize and export images for research datasets, tele-ophthalmology and faster AI model training.
